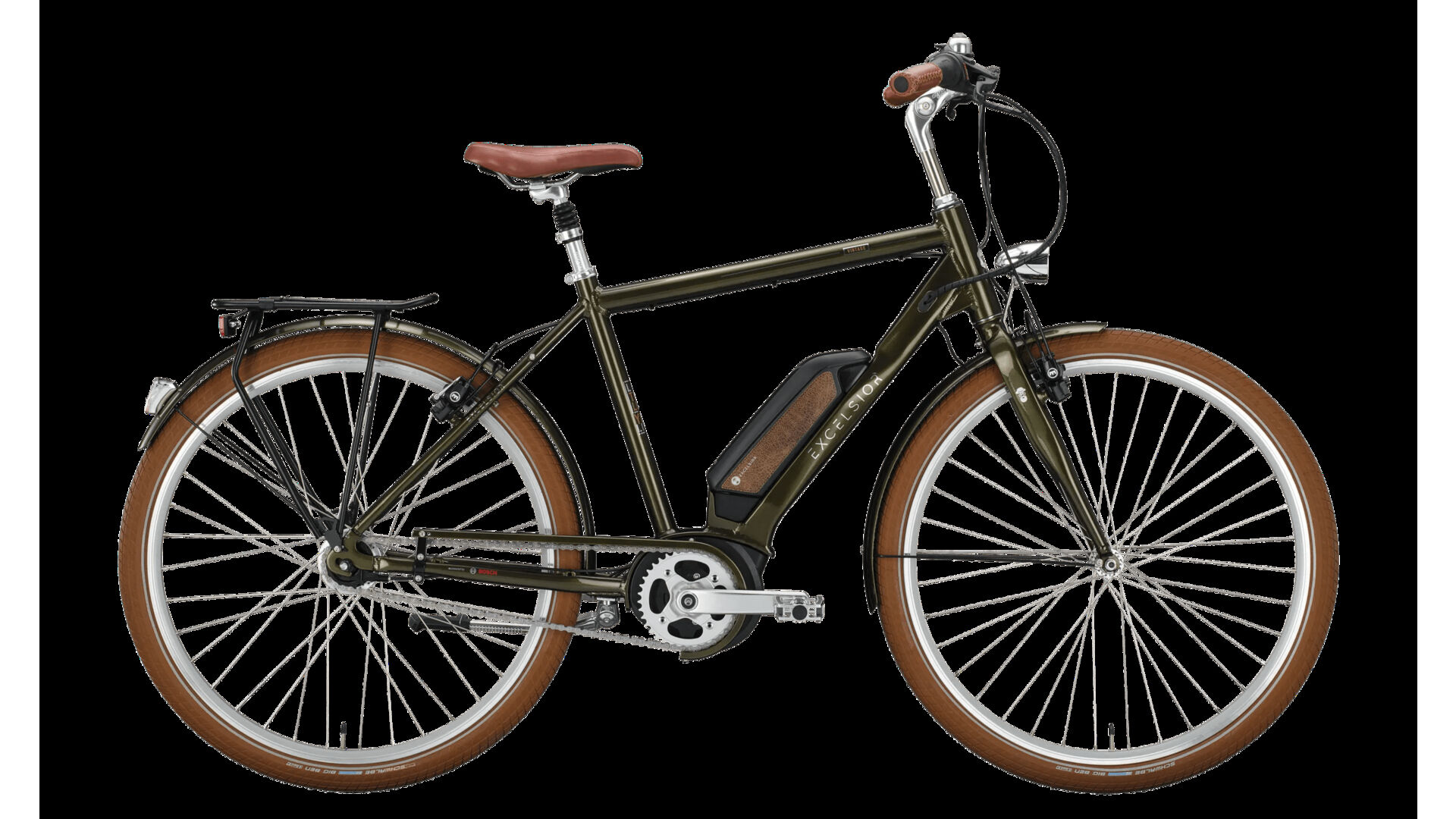

"Vintage E diamond "
The designers from EXCELSIOR have combined trendy vintage charm with current technology in their "Vintage E" model. What's the end result? A shapely frame in trendy colors with a harmonious e-drive from BOSCH. The e-bike is ideally suited for longer tours and short distances through the city.
The central placement of the motor in the bottom bracket area allows the e-bike to maneuver naturally through the city, almost as if you were riding a bicycle. With the 400 Wh battery, which sits on the down tube, you have enough reserves to ride the "Vintage E" to the café in the old town or to the lake far from the city limits for a sundowner in the evening.
To save energy and for fine tuning are the 7 gears of the SHIMANO "Nexus" internal gear hub, which can be changed by twist grip on the handlebars. For braking, there are the hydraulic rim brakes "HS11" from MAGURA. They convince with high braking forces that bring you to a halt with pinpoint accuracy, but can also always be precisely dosed.
Visually, the "Vintage E" remains in a class of its own. The designers from EXCELSIOR have elegantly and discreetly integrated the drive into the elegant overall appearance and even made sure that even the smallest details are perfectly coordinated. For example, the battery is adorned by a faux leather surface that matches the saddle and grips exactly. The bright tires round off the timeless design and also convince with damping properties when it gets a little rough, for example on cobblestones.
The central placement of the motor in the bottom bracket area allows the e-bike to maneuver naturally through the city, almost as if you were riding a bicycle. With the 400 Wh battery, which sits on the down tube, you have enough reserves to ride the "Vintage E" to the café in the old town or to the lake far from the city limits for a sundowner in the evening.
To save energy and for fine tuning are the 7 gears of the SHIMANO "Nexus" internal gear hub, which can be changed by twist grip on the handlebars. For braking, there are the hydraulic rim brakes "HS11" from MAGURA. They convince with high braking forces that bring you to a halt with pinpoint accuracy, but can also always be precisely dosed.
Visually, the "Vintage E" remains in a class of its own. The designers from EXCELSIOR have elegantly and discreetly integrated the drive into the elegant overall appearance and even made sure that even the smallest details are perfectly coordinated. For example, the battery is adorned by a faux leather surface that matches the saddle and grips exactly. The bright tires round off the timeless design and also convince with damping properties when it gets a little rough, for example on cobblestones.
Spezifikationen "EXCELSIOR Vintage E diamond (2022)"
Frame: | Alu |
Fork: | Alu |
Crank set: | LASCO "EB07" |
Crank arm: | 170 mm |
Chain ring / belt ring: | 38 Z. |
Bottom Bracket: | BOSCH |
Brakes: | MAGURA "HS-11" |
Brake lever: | MAGURA "HS-11" |
Shifting lever: | SHIMANO "Nexus", 7-Gg. |
Cassette / belt sprocket: | SHIMANO, 19 Z. |
Chain / belt: | KMC "E1 EPT" |
Drive unit: | BOSCH Mittelmotor Gen.3 "Active Line PLUS", 36 V, 250 W |
Battery: | BOSCH "Powerpack 400", Lithium-Ionen mit BMS, 400 Wh |
Charger: | Bosch 2 Ah |
Display: | BOSCH "Purion", 4-Stufen, Schiebehilfe |
Sensor: | Tretkraftmessung im Motor + Geschwindigkeitssensor |
Rims: | Hohlkammer, Alu, lackiert |
Spokes: | Niro |
Front hub: | SHIMANO "HB-TX500" |
Rear hub: | SHIMANO "Nexus" 7-Gg. LL |
Front tires: | SCHWALBE "Big Ben", 50-622, Reflex |
Rear tires: | SCHWALBE "Big Ben", 50-622, Reflex |
Handle bar: | ERGOTEC "Lady Town", 620 mm, Ø 31,8 mm |
Stem: | ERGOTEC "Octopus 2", verstellbar, Ø 31,8 mm |
Grips: | VELO "VLG-519" |
Saddle: | VELO "VL-6396" |
Seat post: | ERGOTEC Patent "Glide", Ø 27,2 x 300 mm, Alu |
Chain guard: | Alu, lackiert |
Mud Guards: | Alu, lackiert |
Carrier: | MASSLOAD "CL-648", Alu, inkl. MIK-System |
Front light: | CONTEC "Retro Classic E+", LED |
Tail light: | SPANNINGA "Pixeo" |
Frame Lock: | ABUS 4750 BOSCH FRAME |
Kickstand: | URSUS "King 2" |
Pedals: | VP- 658 |
Technical data
Category: | city bike |
E-bike: | yes |
Bosch Smart System: | no |
Drive system: | Bosch |
Drive version: | middle motor |
Battery capacity: | 400 Wh |
Support: | till 25km/h |
Sex: | gents |
Frame shape: | diamond |
Frame height: | 58 cm |
Wheel size: | 28" |
Drive: | chain drive |
Shifting type: | hub gear |
Gears: | 7-speed |
Circuit brand: | Shimano |
Shifting model: | Nexus |
Brake system: | hydraulic rim brake |
Features: | frame lock, system carrier, chain guard, electronic sliding aid, fender |
Permissible total weight: | 140 kg |
Material: | aluminium |
Type: | Article |
Colour: | green |
Colour designation: | dark green glossy |
Weight: | 24,80 kg |
EAN | 4251507936422 |
